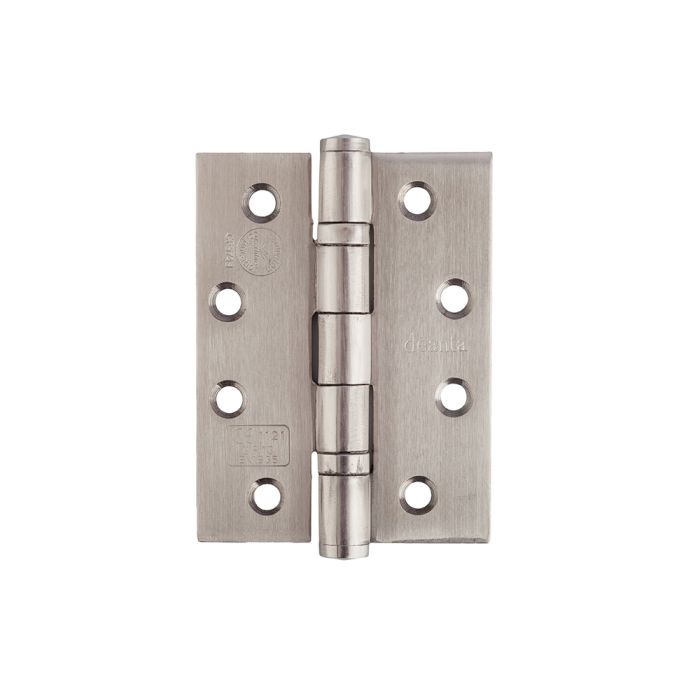

Stainless Steel Grade 13 Hinges (PAIR) FD30 & FD60
Suitable for 45mm and 54mm Doors
Certified for FD30 and FD60 Fire Doors
Deanta Stainless Steel BSEN1935 Grade13 Hinges suitable for FD30 and FD60 Fire Doors
- Built for long-term performance, these stainless steel Grade 13 ball bearing hinges are certified to BS EN 1935 and suitable for FD30 & FD60 fire doors. Available in square or radius corners, they’re tested to 200,000 cycles and recommended in sets of three per door for smooth, durable operation on 45mm and 54mm doors.
- Supplied as a pair with stainless steel screws.
Key features
- BS EN 1935 certified; FD30 & FD60 suitable
- Ball bearing hinge for smooth action
- Tested to 200,000 cycles
- Fits 45mm and 54mm doors
- Square or radius corner options
- Size: 102 x 76 x 3 mm
- Pack contents: 2 hinges + 16 SS screws
- Recommended: 3 hinges per door
Variants/SKUs
- HR102763: Pair 102×76×3 mm – Radius
- HS102763: Pair 102×76×3 mm – Square
FAQs
-
What does BS EN 1935 Grade 13 mean? Grade 13 indicates a high‑duty, single‑axis hinge classification under BS EN 1935, suitable for heavy use and fire door applications when correctly installed.
-
Are these hinges suitable for FD30 & FD60 fire doors? Yes—these hinges are certified to BS EN 1935 and are suitable for FD30 & FD60 fire doors when installed per the door manufacturer’s guidance.
-
Should I use two or three hinges? We recommend at least three hinges per door to improve load distribution, durability, and fire performance.
-
What’s the difference between radius and square hinges? Only the corner shape: radius corners suit pre‑routed doors with rounded mortices; square corners suit sharp‑cut mortices. Function and performance are the same.
-
Are screws included? Yes—each pack includes 16 stainless steel screws.
-
Will these fit my door thickness? Yes—designed for 45 mm and 54 mm thick doors. Check your door and frame prep for 102×76×3 mm hinges.
-
Do they support heavy doors? Grade 13 hinges handle demanding use; actual door weight capacity depends on door width, hinge count, and installation. For very heavy doors, consult the door/hinge datasheets.
| Manufacturer | Deanta Doors |
|---|
